Medbike 2.0 Set – Comprehensive Upper & Lower Limb Rehabilitation

Medbike 2.0 is an MDR-certified (EU 2017/745) medical device designed for comprehensive rehabilitation of the upper and lower limbs. Thanks to the advanced technology from DKN, this device offers versatile training options for patients during the recovery and post-injury stages, focusing on strength, mobility, and functional rehabilitation.

Indications:
The Medbike 2.0 is suitable for a wide range of conditions:

• Nervous system: brain injury, stroke, cerebral palsy, peripheral nerve disorders, spinal cord injuries, Parkinson’s disease, multiple sclerosis.

• Bone and joint system: fractures, osteoporosis, ligament injuries, osteoarthritis, joint replacements.

• Muscle and tendon disorders: spasticity, muscle atrophy, muscle and tendon tears, tendonitis.

• Chronic conditions: type 2 diabetes, hypertension, heart and lung diseases, constipation, kidney dialysis.

Advanced Training Modes:

• Passive: motor fully supports the movement.

• Assisted: the device detects remaining muscle strength and provides automatic assistance.

• Active-passive: seamless transition between passive and active movement for optimal training.

• Active: full exercise using the patient’s own muscle strength, with adjustable resistance for muscle endurance and cardiopulmonary improvement.

• Isokinetic: constant speed with variable resistance, ideal for targeted muscle strength and endurance training.

• Spasm Protection: monitors muscle tone and slowly stretches to relieve spasms quickly.

Smart Evaluation and Interaction:
The Medbike 2.0 integrates an evaluation and isokinetic software system to measure muscle strength, range of motion, and training results. This allows precise monitoring of rehabilitation and personalized treatment. Additionally, it supports a situational interactive rehabilitation training system, making individual or group sessions more engaging through interactive environments and multisensory stimulation.

Comfort and Safety:

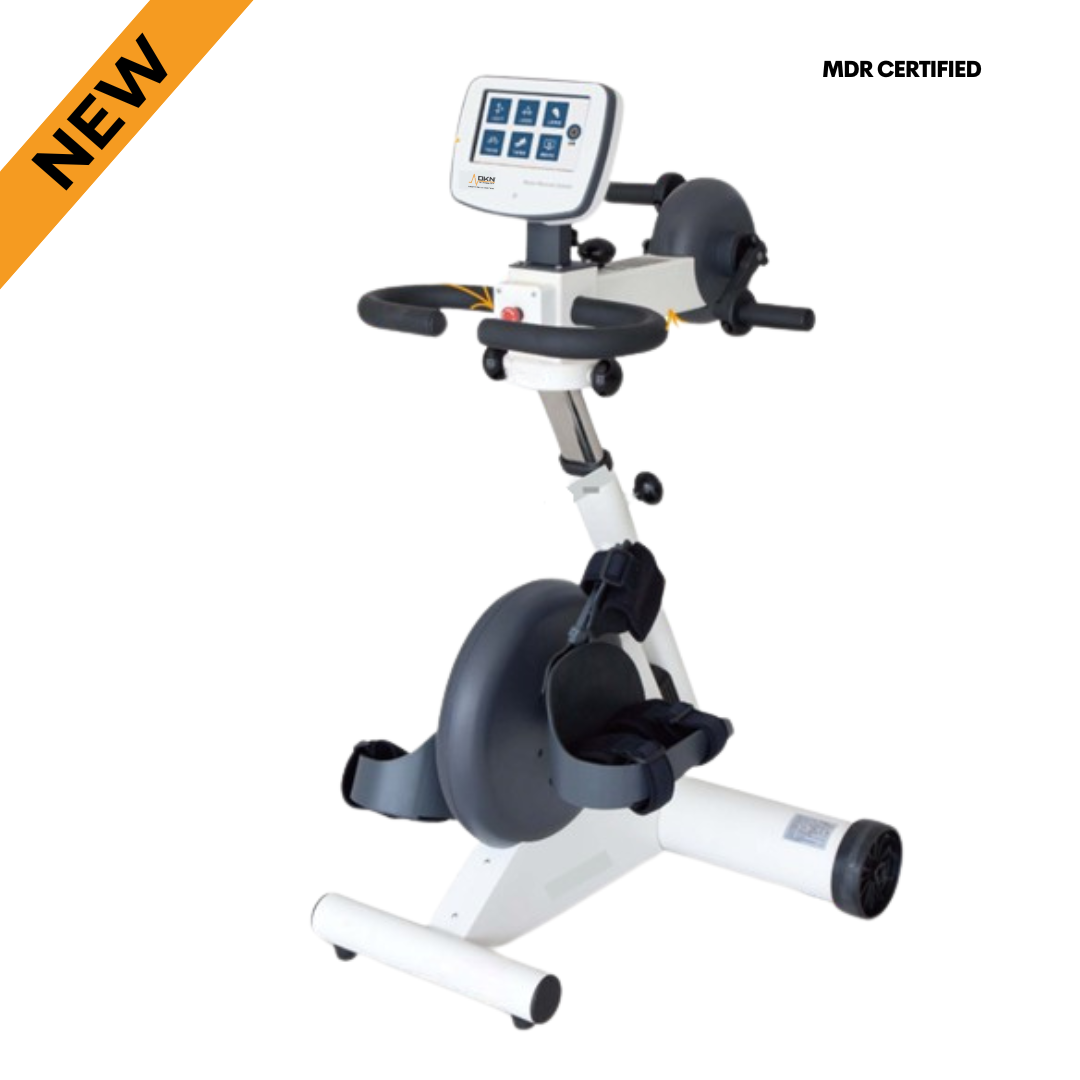

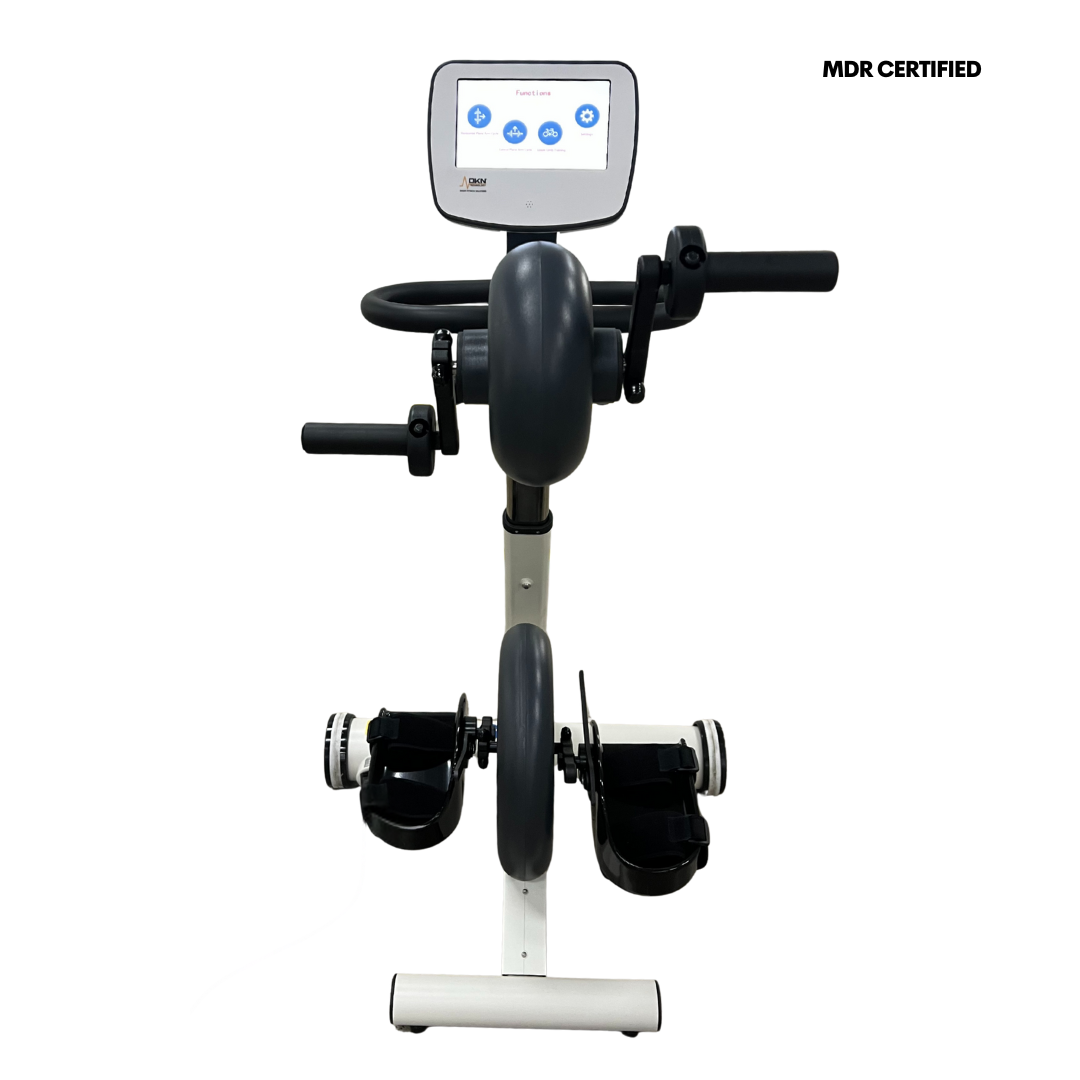

• 7-inch or optional 10-inch LCD touchscreen with 180° rotation and adjustable viewing angle.

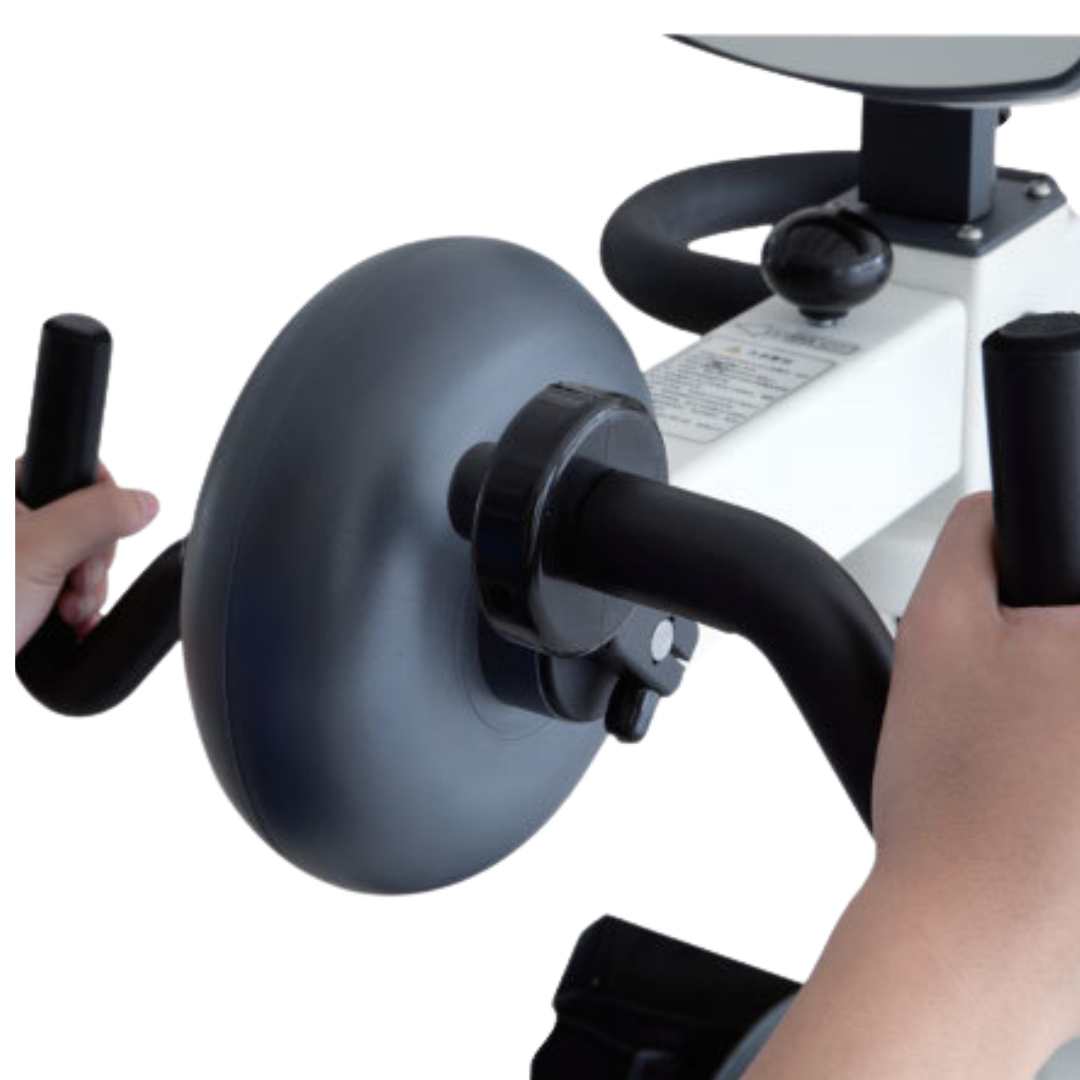

• 180° rotating arms and adjustable arm and leg supports.

• Safety straps and adjustable seat for correct posture and a secure training environment.

• Adjustable seat and leg guard height, easily sliding and adaptable to the patient.

• Precise parameter settings: resistance 0–20 N, speed 0–60/min.

Clinical Benefits:

• Improves muscle strength, joint mobility, and balance.

• Reduces spasticity and muscle contractures.

• Promotes blood circulation, bowel, and bladder function.

• Increases confidence in walking and daily activities.

• Saves time and labor costs in clinical settings.

Applications:
The Medbike 2.0 is ideal for hospital rehabilitation departments, geriatrics, orthopedics, neurology, cardiopulmonary rehab centers, day care centers, sub-health management, nursing homes, and other healthcare facilities.

Technical Specifications:

• Weight: 60 kg | Dimensions: 850 × 700 × 1090–1190 mm

• Training modes: passive, assisted, active-passive, active, spasm relief

• Optional: evaluation and isokinetic software system, interactive training systems, large 10-inch display

The Medbike 2.0 provides a complete, safe, and interactive rehabilitation experience, helping patients recover faster and return to daily activities more effectively.
